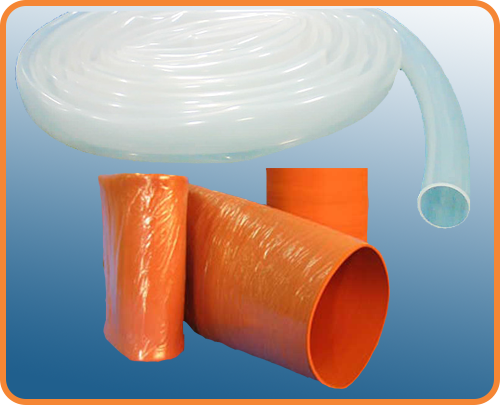

Our dielectric silicone sleeve manufactured from a very specific Silicone
Rubber Sleeves compound, providing excellent electrical, thermal and
chemical resistance, making it ideally suitable to the harsh environment
that is the Corona treatment process
Silicone Sleeves are manufactured to extremely close tolerance in wall thickness and diameter to ensure reliable and consistent corona treatment performance.
Standard Sizes Available
|
#
|
ROLLER DIAMETER
|
ID (IN mm)
|
Wall Thickness (IN MM)
|
|
1
|
2" - 50 MM
|
48
|
3
|
|
2
|
2.5" - 60 MM
|
58
|
3
|
|
3
|
3" - 76 MM
|
72
|
3
|
|
4
|
4" - 100 MM
|
98
|
3
|
|
5
|
5" - 125 MM
|
120
|
3
|
|
6
|
6" - 150 MM
|
146
|
3
|
|
7
|
8" - 200 MM
|
190
|
3
|
