Silicone Braided Hose

  1. Home
  2. Silicone Braided Hose

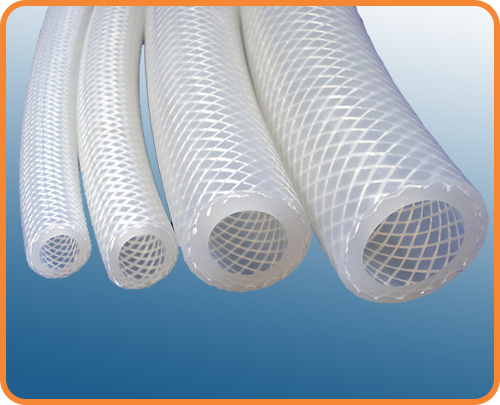

Platinum Cured Silicone Hose reinforced with Polyester Braiding

Platinum cured Silicone hose reinforced with Polyester braiding. It has excellent flexibility for pressurized fluid transfer application in pharmaceutical and Biotech Industries. We are catering these products to all pharmaceutical and biotech companies in India and Overseas. This hose is manufactured under stringent quality parameters to have greater flexibility and minimum bend radius.

Applications
  • Pharmaceutical and biotech material transfer.
  • Critical liquid transfer.
  • Load cell and cell cultures.
  • Analytical lab Food and beverages.
  • Biotechnology.
Key Features
  • Excellent flexibility.
  • Temp Range :- -80 °C TO 180°C
  • Available with SS316 L Tri-clover end fittings in required length
  • Colored outer layer available
  • Customer color coding available
  • Sterilizable by Autoclave, Ethylene oxide gas & gamma Radiation
ENQUIRE NOW

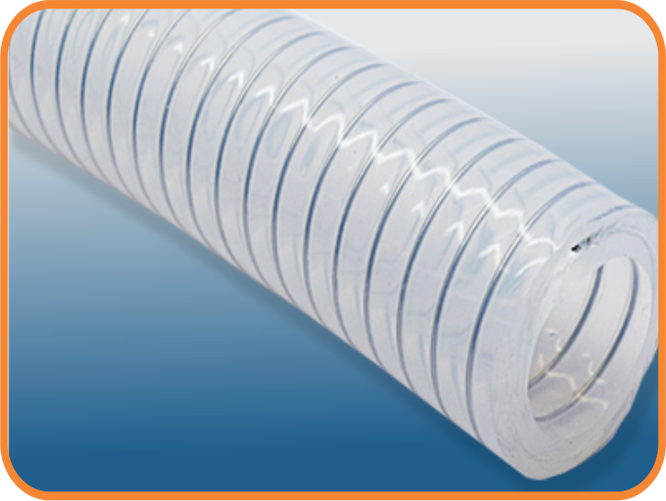

Platinum Cured Silicone Hose Reinforced with SS 316 Helical Wire

Platinum cured Silicone hose reinforced with SS 316L Helical wire. It has better transparency to visualize flow and kink resistance. It is designed for material transfer application under high vacuum in pharmaceutical industries. The product is more superior compared to Polyester braided hose in high pressure & high vacuum rating applications. It is also used for antistatic application.

Applications
  • Pharmaceutical Processing.
  • Powder & fluid transfer
  • High Vacuum applications
  • Load cell application.
  • Food Processing.
  • Bulk Transfer
  • Biotechnology.
Key Features
  • Having high burst pressure resistance compare to polyester braided hose.
  • Having Antistatic properties to dissipate static electrical charge makes it suitable for highly volatile flammable fluid transfer
  • Temp Range : -80 °C TO 210°C
  • Available with SS 316 L Tri-clover end
ENQUIRE NOW

Platinum Cured Silicone Hose Reinforced with Polyester Braiding and SS 316 Helical Wire

Platinum cured Silicone hose reinforced with SS 316L Helical wire and polyester braiding having better flexibility with high pressure resistance. It has high burst pressure rating along with high vacuum resistance compare to Platinum Cured Silicone Hose reinforced with SS 316 Helical Wire. The product is suitable in pressurized fluid transfer application.

Applications
  • Pharmaceutical processing
  • Powder and fluid transfer
  • High vacuum pump applications
  • Food processing
  • Load cell application
  • Biotechnology
  • Bulk transfer
  • Fermentations and bioreactors
Key Features
  • Designed for high vacuum rating applications
  • Having Antistatic properties to dissipate static electrical charge makes it suitable for highly volatile flammable fluid transfer
  • Imparts no taste and odor
  • Temp Range :- -80 °C TO 180°C
ENQUIRE NOW

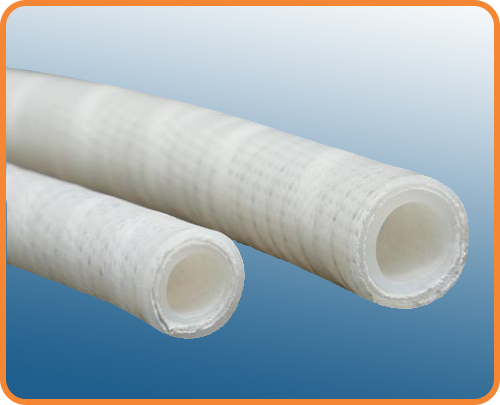

Platinum Cured Silicone Hose Reinforced with 2-3 Ply of Polyester Fabric & SS 316 Helical Wire

Platinum cured Silicone hose reinforced with SS 316L Helical wire and 2-3 layers of polyester fabric wrapping. It has having multiple layers of high quality polyester fabric to enhance burst pressure rating. The product is suitable for high-pressurized steam transfer application in both pharmaceutical and biotech industries.

Applications
  • Pharmaceutical processing
  • CIP, WFI transfer application
  • Food processing
  • Load cell application
  • Bulk transfer
  • Fermentations and bioreactors
Key Features
  • Having high-pressure rating ensures safe material transfer handling process.
  • Designed for high pressurized steam transferapplications
  • Excellent flexibility & kink resistance
  • Lot traceable
  • Temp Range :- -80 °C TO 180°C
  • Available with SS316 L Tri-clover end Fitting in required customized length
ENQUIRE NOW
